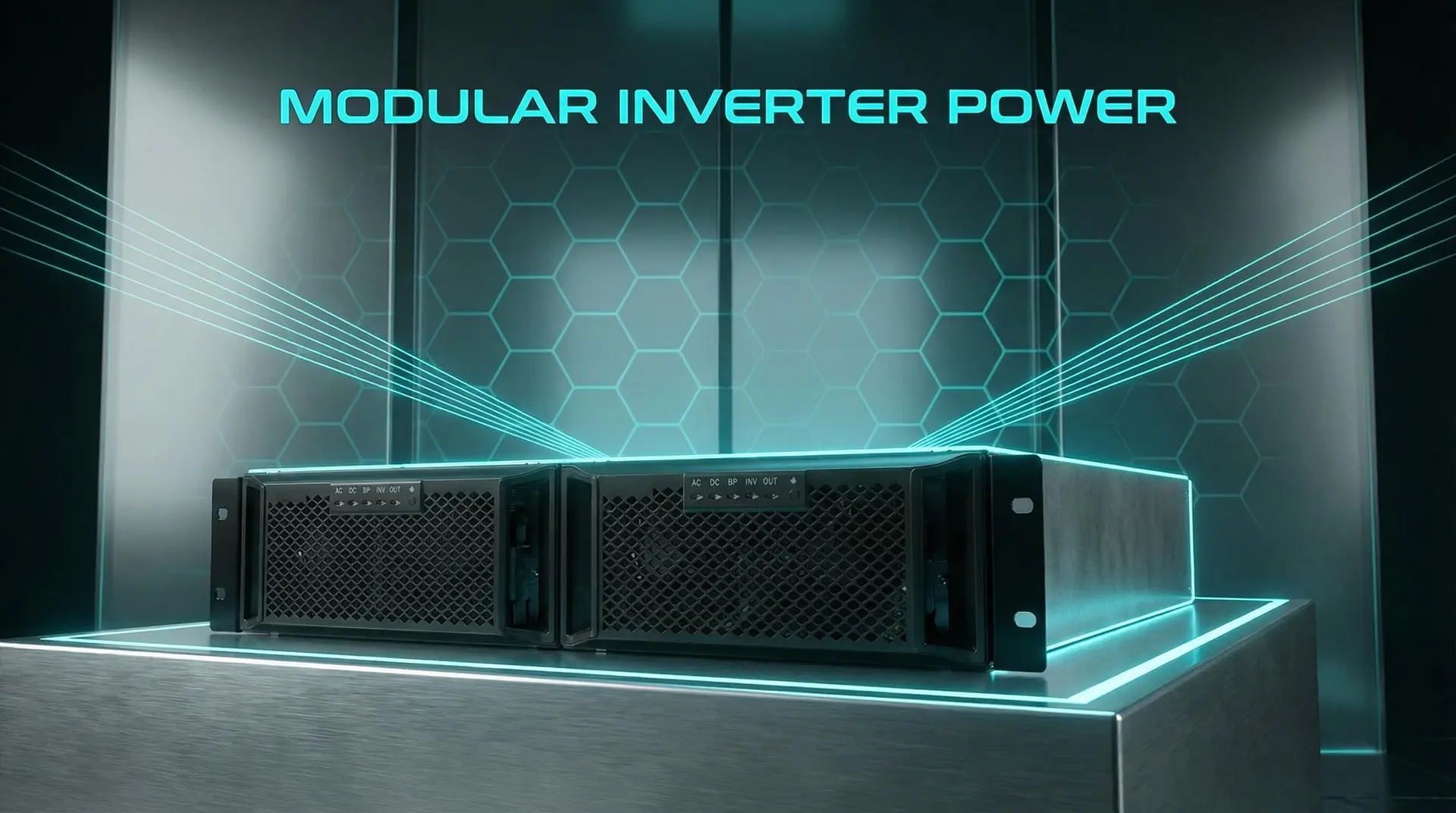

DT1500 Series Modular Inverter (48 VDC / 220 VDC)
N+1 Parallel Redundancy Design | Hot-Swappable Modules | 32-bit DSP + High-Frequency SPWM Technology | Efficiency up to 90% | Suitable for Data Centers, Communication Hubs, and Critical Industrial Loads
- 🔗 N+1 Parallel Redundancy (Up to 4 Units)
- 🔌 Hot-Swappable Design (Plug-and-Play)
- 📈 Efficiency ≥90%
- 🧠 32-bit DSP Digital Control
- 🌡️ Wide Operating Temperature Range; High-Altitude Adaptability
- DC Input Voltage: 48 Vdc / 220 Vdc
- AC Output Voltage: 220 Vac / 230 Vac
- Module Power: 2 kVA / 3 kVA
- Parallel Function: Supported (up to 4 units)
- Efficiency: ≥90% (at 80% resistive load)
- Bypass Transfer Time: 5 ms (single unit); >30 ms (multiple units); <5 ms (with external STS)
- Operating Temperature: -40°C to +55°C
| Feature | Description |
|---|---|

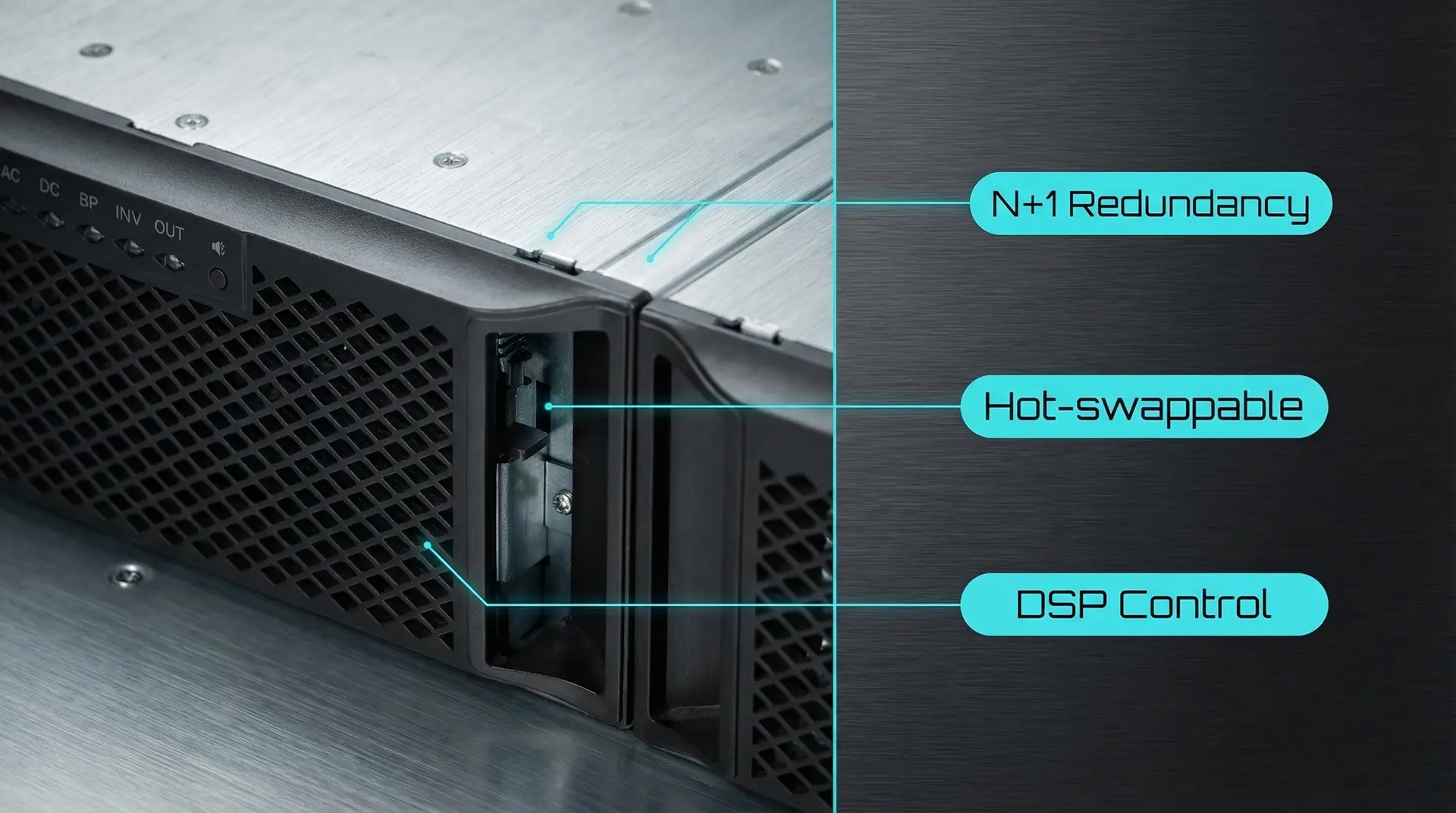

| N+1 Parallel Redundancy Design | Supports up to 4 modules in parallel; failure of any module does not affect system power supply, ensuring high reliability |
| Hot-Swap Design | Modules are plug-and-play with no parameter configuration required; maintenance can be performed without system shutdown, greatly improving availability |
| 32-bit Digital DSP Control | Uses high-speed digital signal processor combined with high-frequency SPWM technology for high control precision and fast dynamic response |
| High Power Density | 1/2 19-inch width design, 2U height, compact size, saving cabinet space |
| Front Panel Visual Alarms | LED indicators and LCD display provide real-time status of AC status, DC status, and operating mode; audible and visual alarms upon fault |
| Intelligent Monitoring | Standard RS485 interface, optional SNMP card, supports dry contact outputs for easy integration into environmental monitoring systems |
| High Efficiency | Inverter efficiency up to 90% or more, reducing operating losses, energy-saving and environmentally friendly |
| Wide Operating Environment | Operating temperature -40℃ ~ +55℃, altitude ≤3000m, suitable for harsh environments |
| Inverter Module Parameters | ||||
|---|---|---|---|---|
| Model | BWT48/220-2KVAAL | BWT220/220-2KVAAL | BWT48/220-3KVAAL | BWT220/220-3KVAAL |
| DC Input Voltage | 48Vdc | 220Vdc | 48Vdc | 220Vdc |
| Rated Power | 2KVA / 1600W | 2KVA / 1600W | 3KVA / 2400W | 3KVA / 2400W |
| Parallel Function | ✅ Supported (up to 4 units) | ✅ Supported (up to 4 units) | ✅ Supported (up to 4 units) | ✅ Supported (up to 4 units) |
| Number of Modules | 1 | 1 | 1 | 1 |
| AC Bypass Input | |
|---|---|
| Parameter | Specification |
| Rated Voltage | 220Vac/230Vac |
| Voltage Range | 176~264Vac |
| Frequency Range | 40Hz~55Hz @50Hz |
| Battery Input | ||
|---|---|---|
| Parameter | 48Vdc Version | 220Vdc Version |
| DC Input Voltage | 48Vdc | 220Vdc |
| DC Voltage Range | Shutdown ≤40Vdc or ≥60Vdc; Startup 42Vdc~59Vdc | Shutdown ≤180Vdc or ≥275Vdc; Startup 190Vdc~270Vdc |
| Battery Type | Lithium, lead-acid, gel, nickel-cadmium | Lithium, lead-acid, gel, nickel-cadmium |
| Output Parameters | |
|---|---|
| Parameter | Specification |
| Output Voltage | 220Vac/230Vac |
| Output Frequency | 50Hz |
| Parallel Current Imbalance | <3% of rated current (RMS) |
| Waveform | Pure sine wave (resistive full load <3%, non-linear load <5%) |
| Dynamic Response | Voltage transient range <3%, recovery time ≤60ms (load 0→100%) |
| Overload Capacity | 105%~125% load for 10min; 125%~150% load for 60s |
| Inverter Efficiency (80% resistive load) | ≥90% |
| Bypass Transfer Time | Single unit 5ms, multiple units >30ms, external STS <5ms |
| Operating Environment | |
| Parameter | Specification |
| Dielectric Strength | 2000Vac/10mA/60s |
| Humidity | 0~90%, non-condensing |
| Operating Altitude | ≤3000m (derate 1% per 100m increase between 1500~3000m) |
| Noise (1m) | <45dB |
| Indicators | AC status, DC status, operating mode |
| Communication Interface | RS485, optional SNMP card (external) |
| System Cabinet Parameters (DT1500 Series Inverter Power System Cabinet) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | BWT48/220-6KVAML | BWT220/220-6KVAML | BWT48/220-12KVAML | BWT220/220-12KVAML | BWT48/220-18KVAML | BWT220/220-18KVAML | BWT48/220-24KVAML | BWT220/220-24KVAML |
| DC Input Voltage | 48Vdc | 220Vdc | 48Vdc | 220Vdc | 48Vdc | 220Vdc | 48Vdc | 220Vdc |
| Rated Power | 8KVA/6.4KW | 8KVA/6.4KW | 12KVA/9.6KW | 12KVA/9.6KW | 18KVA/14.4KW | 18KVA/14.4KW | 24KVA/19.2KW | 24KVA/19.2KW |
| Number of Modules | 2 | 2 | 4 | 4 | 6 | 6 | 8 | 8 |
| Bypass Type | Static Transfer Switch | Static Transfer Switch | Static Transfer Switch | Static Transfer Switch | Static Transfer Switch | Static Transfer Switch | Static Transfer Switch | Static Transfer Switch |
| Transfer Time | ≤4ms | ≤4ms | ≤4ms | ≤4ms | ≤4ms | ≤4ms | ≤4ms | ≤4ms |
| Parallel Function | ✅ Supported | ✅ Supported | ✅ Supported | ✅ Supported | ✅ Supported | ✅ Supported | ✅ Supported | ✅ Supported |
| System Cabinet General Parameters | |
|---|---|
| Parameter | Specification |
| AC Bypass Voltage Range | 176~264Vac |
| AC Bypass Frequency Range | 40Hz~55Hz @50Hz |
| Battery Voltage Range | 48Vdc: Shutdown ≤40/≥60V, Startup 42~59V; 220Vdc: Shutdown ≤180/≥275V, Startup 190~270V |
| Battery Type | Lithium, lead-acid, gel, nickel-cadmium |
| Output Frequency | 50Hz |
| Parallel Current Imbalance | <3% of rated current (RMS) |
| Waveform | Pure sine wave (resistive full load <3%, non-linear load <5%) |
| Dynamic Response | Voltage transient <3%, recovery time ≤60ms (0→100% load) |
| Overload Capacity | 105%~125% load for 10min; 125%~150% load for 60s |
| Inverter Efficiency | ≥90% |
| Bypass Transfer Time | Built-in STS ≤4ms |
| Dielectric Strength | 2000Vac/10mA/60s |
| Operating Altitude | ≤3000m (derating rules as above) |
| Noise | <45dB |
| IP Rating | Customizable |
| Cabinet Dimensions | 42U / 45U / 48U (customizable) |
| Power Distribution | Customizable |
| Cooling Method | Customizable |
| Monitoring Display | Power normal, inverter normal, battery undervoltage, output overload, etc. |
| Communication Interface | RS485, SNMP |
| Data Center | 🖥️ | Modular design supports N+1 redundancy, hot-swappable maintenance, and seamless switching with STS, ensuring power supply continuity for IT equipment |
|---|---|---|
| Communication Hub Equipment Room | 📡 | Provides highly reliable inverter power for core communication equipment, supports redundant system configurations, and enables unattended remote monitoring |
| Hospital / Critical Facilities | 🏥 | Medical equipment demands high power quality; modular redundancy ensures uninterrupted power for critical areas such as operating rooms and ICUs |
| Industrial Automation Production Line | 🏭 | Provides stable AC power for PLCs and control systems; hot-swappable functionality reduces downtime |
| Broadcast Television Transmission System | 📺 | Broadcasting equipment requires high reliability; modular redundancy combined with fast transfer ensures broadcast safety |
What is the difference between the DT1500 and the DT2000?
The DT1500 utilizes a 1/2 19-inch module design that supports hot-swapping and allows for parallel operation of up to four units; it offers two input voltage options: 48V and 220V. The DT2000 is a full-width module that supports masterless parallel operation of up to eight units, with input voltage options of 110V and 220V; it is suitable for higher-power applications.
Since the modules support hot-swapping, is it necessary to configure any parameters?
No. The modules are plug-and-play; the system automatically detects them and performs current sharing without requiring any parameter configuration.
What is the function of the STS built into the system cabinet?
The built-in STS enables automatic switching between dual AC inputs, with a switching time of ≤4ms, thereby further enhancing power supply reliability.
How is remote monitoring achieved?
The modules come standard with an RS485 interface, and the system cabinet offers an optional SNMP card, allowing for integration into a dynamic environment monitoring system.
Does altitude affect the output?
At altitudes between 1,500m and 3,000m, the output power is derated by 1% for every 100-meter increase in elevation; please select the appropriate model based on your actual altitude.
Which battery types are supported?
The system supports lithium-ion, lead-acid, gel, and nickel-cadmium batteries; the battery parameters are fully configurable.
